Direct View LED: The Ultimate All-in-One Solution

A Direct View LED display is a large screen built from millions of tiny LED lights. Each light cluster makes its own color and brightness. The screen has no backlight and no glass layers.

This is the key difference between dvLED and a regular TV. A standard TV shines a backlight through a layer of liquid crystal glass to create an image. A dvLED screen does not do this. Each pixel emits its own light directly toward the viewer.

The result is a brighter, sharper image with deeper blacks and better contrast — at sizes up to 137 inches.

Self-Emitting Pixels

Every pixel on a dvLED screen holds three tiny LEDs: one red, one green, and one blue. These three LEDs mix to create any color on the spectrum. They emit light directly at the audience.

This design allows dvLED screens to reach 1,000 to 5,000 nits of brightness. For context, a standard office monitor runs at 250 to 400 nits. Even in a room with large windows and bright overhead lights, your content stays crisp and readable.

When a pixel needs to show black, it simply turns off. The pixel produces zero light and zero grey bleed. This creates the true, deep black levels that make charts, video, and brand graphics look sharp and vivid.

Modular Panel Architecture

dvLED screens are built from a grid of small panels called cabinets or tiles. Each cabinet snaps tightly to the next one. The surface is completely smooth when the panels are assembled. There are no gaps, no frames, and no borders.

This modular build also makes service easy. If a panel ever needs attention, a technician can remove and replace it from the front. No wall teardown. No downtime.

Pixel Pitch: The Sharpness Factor

Pixel pitch is the distance between each LED cluster, measured in millimeters. It is the most important spec to review when choosing a screen.

Fine pitch (P1.5): LEDs are packed close together. This creates high resolution. P1.5 is best for indoor boardrooms and training rooms where viewers sit within 10 to 15 feet of the screen.

Medium pitch (P2.0 to P2.5): Good for larger rooms where viewers sit 15 to 25 feet away. Slightly lower cost than fine pitch.

Coarse pitch (P3.0 and above): Used for lobbies, outdoor signs, and stadium screens where the audience is far away.

Easy rule: Multiply the pixel pitch number by 10 to get the minimum comfortable viewing distance in feet. A P1.5 screen looks sharp at 15 feet and closer.

In the past, building a video wall meant buying many separate parts. You needed a video processor, sending cards, an equipment rack, audio amplifiers, and wall speakers. Installation could take several days and cost far more than expected.

All-in-One (AIO) dvLED systems combine everything into one frame. The display, the controller, and the speakers are all built in.

What you get out of the box:

• Built-in controller: No external rack or video scaler. The system brain sits inside the frame.
• Integrated stereo speakers: High-quality audio is built into the bottom frame. No amp to buy or wire.
• Standard wall power: The entire unit runs on regular outlets. No costly electrical upgrades.
• Factory pre-calibration: Color and brightness are set correctly at the factory. No manual panel-by-panel adjustments.

The result: installation drops from days to hours. And your total equipment cost drops with it.

1. No Bezel Lines — Ever

Tiled TV walls always leave dark grid lines. These lines run through your charts, your video calls, and your presenter’s face. A dvLED screen has no bezels. The surface is completely seamless from edge to edge.

2. True Black Levels

When an LED pixel shows black, it shuts off completely. A traditional LCD screen cannot do this. Its backlight leaks through the crystals and turns blacks into a muddy grey. On a dvLED screen, black is black. Your content looks bold, vivid, and professional.

3. Extreme Brightness for Any Room

dvLED screens run at 1,000 to 5,000 nits. They stay visible and sharp in direct sunlight, under bright stage lighting, or in a lobby with floor-to-ceiling windows. Projectors require a dark room to work well. dvLED does not.

4. Built to Last Over 100,000 Hours

A projector bulb burns out after 2,000 to 5,000 hours. Then you pay to replace it. A quality dvLED display is rated for over 100,000 hours of continuous use. That is more than 11 years of running the screen 24 hours a day. Your initial investment pays off for a very long time.

5. Protected Surface Technology

Many dvLED panels use Glue-on-Board (GOB) technology. A clear protective layer is bonded over the LEDs. This shield protects against dust, moisture, and minor impacts from people walking past. Your screen stays clean and damage-free in busy, high-traffic environments.

Corporate Boardrooms and Conference Rooms: Pre-packaged AIO kits come in standard sizes from 110 to over 200 inches. They match standard 16:9 video formats. A presenter can share a laptop wirelessly in seconds with no adapters or cables.

Training Rooms and Classrooms: A bright, seamless screen keeps every person in the room focused. Fine-pitch models like P1.5 deliver sharp text that is readable from the back row.

Lobbies and Reception Areas: A large, frameless screen grabs attention the moment someone walks in. Loop brand content, live video, or digital signage around the clock.

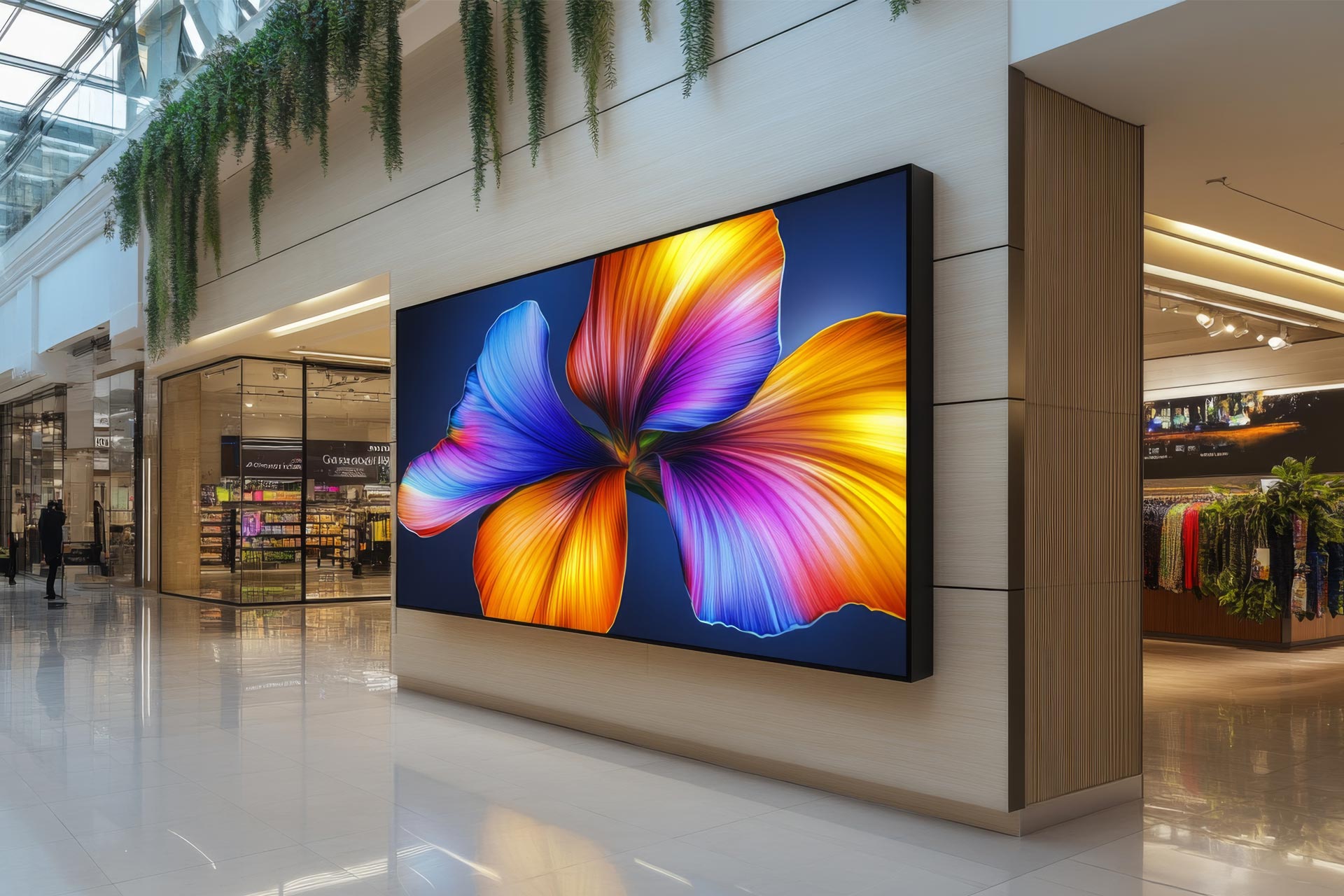

Retail Environments: Bright dvLED displays draw foot traffic and bring products to life. No faded backlights. No washed-out colors. Just vivid, attention-grabbing visuals.

Security and Operations Centers: Operators monitor multiple live feeds all day and all night. No bezel lines splitting the image. Front-serviceable panels keep the screen running with near-zero downtime.

Portable and Event Setups: Rolling dvLED carts include foldable side panels and a motorized lift. One person can move a large screen through a standard door and set it up in minutes.

Choosing the right Direct View LED system depends on your room, your lighting, and how your team uses the space. We make this simple with a three-step process.

Step 1 — Pick your setup: We evaluate your room and recommend the best screen size and pixel pitch for your use case. No guesswork.

Step 2 — Clean, fast installation: Our team mounts the frame and snaps the tiles into place.

Step 3 — Turn it on and go: Press one button. Share your laptop wirelessly. That is the whole process.

Stop paying for burned-out projector bulbs, or working around ugly grid lines. With a direct view LED, you’ll never have to explain to clients why your technology looks outdated again.

Contact Shultz Audio Video today to request your free site evaluation. We will recommend the right Direct View LED system for your space and your budget — and have it running before you know it.

Shultz Audio Video supplies and installs turnkey Direct View LED display systems for boardrooms, conference rooms, huddle rooms, lobbies, training rooms, retail environments, and control centers. We serve all of San Diego County. To get started, request a consultation by using the button below to fill out the form.
