Low Voltage Wire: The Homeowner’s Guide

Low voltage wire is the quiet backbone that makes your Wi-Fi fast, your TV wall clean, your music seamless, and your security cameras reliable. Plan it right once, and everything just works. This guide shows what to run, where to run it, and how to future-proof your San Diego home without drowning you in tech-speak.

Low Voltage Wire: What Most Homes Need

  • Ethernet (Cat6A) to each TV, each desk/home office, and one ceiling-mounted Wi-Fi access point per floor (plus the patio).

  • Speaker wire to any room you might want music (and a pair of outdoor speakers).

  • Doorbell/cameras: run Ethernet to the doorbell and each camera location (power + data in one).

  • Conduit at every TV location and any “feature wall” so upgrades are easy.

  • All cables home-run to one rack/closet with ventilation and a small UPS (battery backup).

If you only did that, you’d solve 90% of the pain people have after a remodel.

What Goes Where (by space)

Wi-Fi & Internet

TVs (living room, bedrooms, patio)

  • Pull: Cat6A + coax + conduit with pull string back to the rack or a nearby cabinet.

  • Fireplace TVs: use a side chase (avoid heat).

  • Long runs/projectors: use HDBaseT over Cat cable or fiber—not a cheap HDMI cord.

Whole-Home Audio

  • Speakers: 14/2 to most rooms, 12/2 for long/high-output runs.

  • Outdoor: burial-rated wire to landscape speakers and sub; keep junctions above grade.

  • Control: app-only is fine; add keypad wire (22/4) if you want wall controls later.

Home Theater / Media Room

  • Speakers: LCR at the screen, surrounds at ear height, Atmos in-ceiling.

  • Subs: pre-wire two+ locations lets us place for smooth bass.

  • Video: HDBaseT or fiber for long throws to a projector.

Security & Door Entry

  • Cameras: Ethernet (PoE) to each location—more reliable than battery cams.

  • Doorbell: run both doorbell power and Ethernet so you can choose standard or PoE models.

  • Recorder/NVR: near the rack on a UPS.

Smart Shades & Scenes

  • Windows: low-voltage power/data to the window groups you’ll automate.

  • Scenes: wire for a simple keypad in kitchen/living (“All Off,” “Movie,” “Goodnight”).

Low Voltage Wire: Choosing Cables

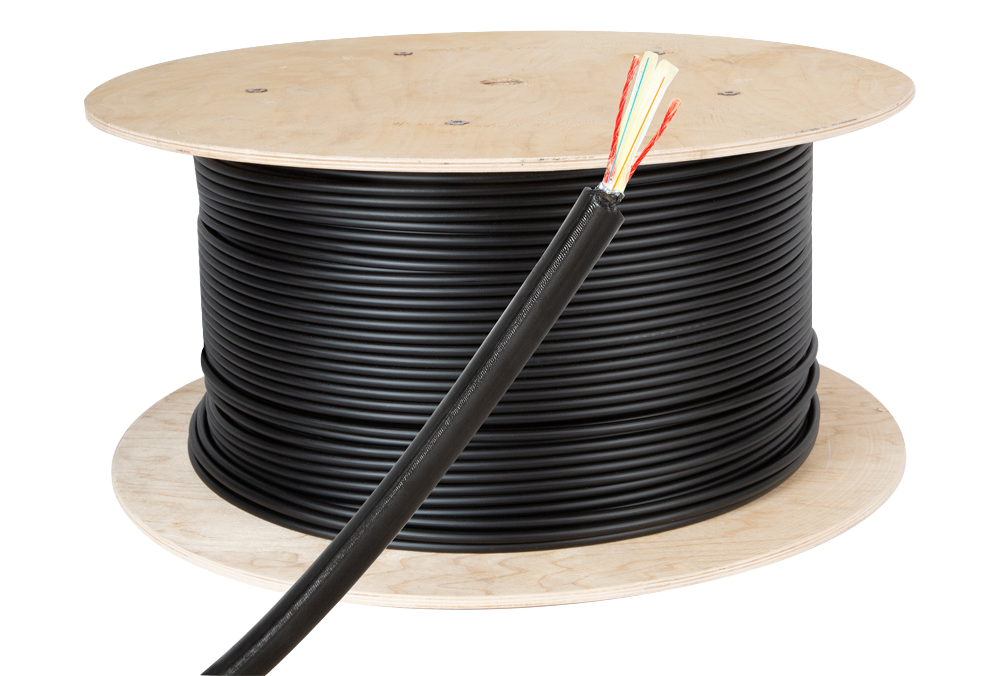

Low Voltage Wire - Fiber Optic

  • Cat6 vs Cat6A

    • Cat6: fine for short, simple drops.

    • Cat6A: our go-to for APs, TVs, longer runs, and future 2.5/5/10-gig speeds.

    • If walls are open, choose Cat6A. Labor is the big cost; the cable bump is cheap insurance.

  • Speaker wire

    • 14/2 most rooms, 12/2 for long/high output, 14/4 when one box has to serve two speakers or you might bi-amp later.

  • Coax (RG6)

    • Still useful for over-the-air antenna or as a utility line. Costs little. Keep it.

  • Control/Sensor

    • 22/2 or 22/4 for keypads, sensors, triggers. Choose shielded if cables must run alongside electrical.

  • Fiber (optional)

    • Great as a backbone between floors or to the rack if you want “never repull” headroom.

New Build vs. Remodel (your game plan)

Low Voltage Wire

New Build / Major Renovation

  1. Home-run everything to a central rack closet (ventilated).

  2. Conduit everywhere you might upgrade (all TVs, hard-to-reach spots).

  3. Label both ends (room + device). Take photos. Save as-builts.

Light Remodel / Finished Walls

  • Hit the high-impact drops first: TVs, desks, ceiling APs, doorbell/cams, patio.

  • Use surface raceways or small surgical cuts.

  • Still add conduit at TV walls—you’ll thank yourself later.

Reliability & Safety (the boring stuff that saves you)

  • Keep low-voltage separate from electrical runs to avoid interference.

  • Don’t kink cables (respect bend radius).

  • Use the right jacket rating: Plenum (CMP) in air-return spaces, Riser (CMR) for floor-to-floor.

  • Fire-stop penetrations. Follow local San Diego code.

The Rack (where the magic stays tidy)

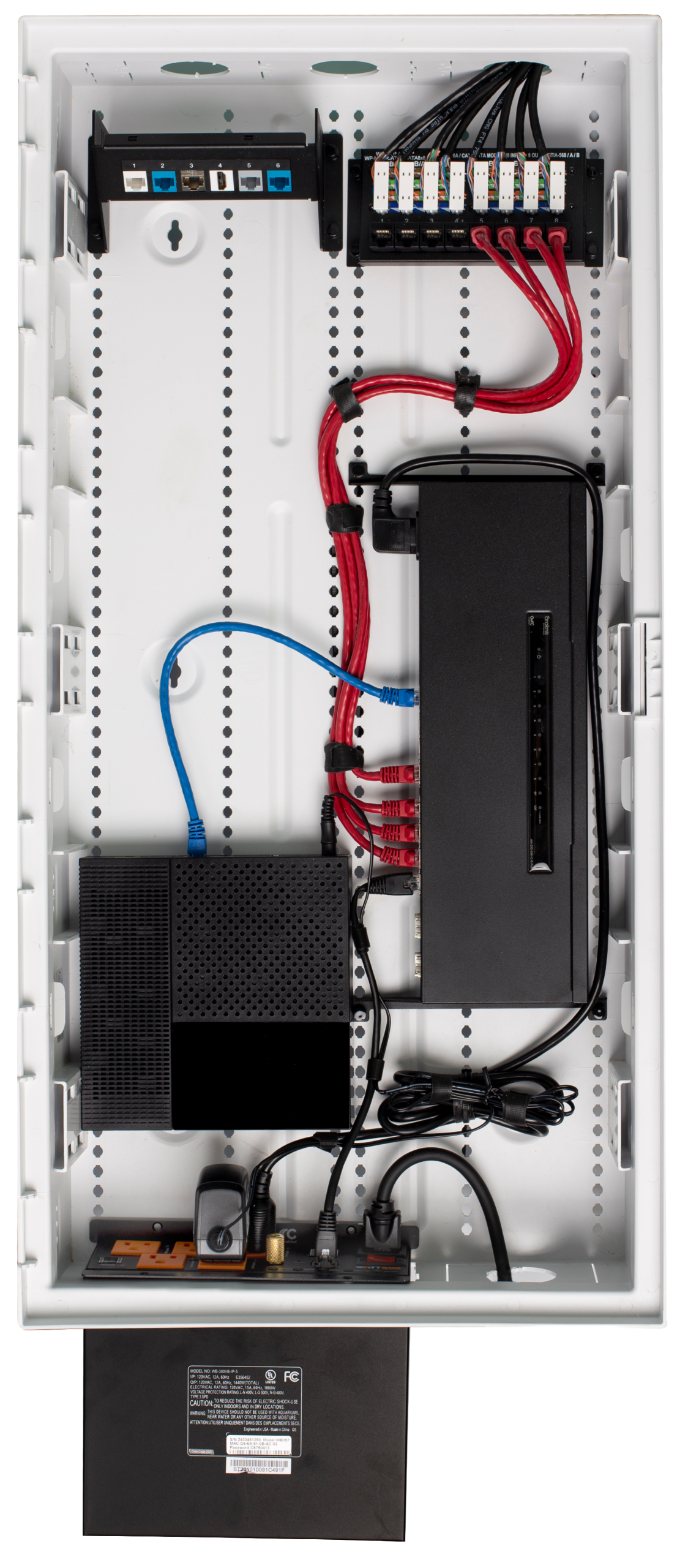

Low Voltage Wire: The Rack

  • Ventilated closet/cabinet, patch panels, labeled keystones, a solid network switch, and a UPS + surge.

  • Neat cables + test reports = easy service and fewer mysteries.

  • Snap label photos; keep docs in a shared folder.

Budgeting with a Clear Head

  • Think in drops (each TV, AP, speaker pair, camera, keypad = one drop).

  • Best value: pull more while walls are open; conduit at every TV.

  • False savings: cheap patch cords, skipping certification tests, no conduit on feature walls.

  • Cat6A upgrade is a small cost for a big lifespan.

Low Voltage Wire: Your 3-Step Plan

  1. Assess – Quick walkthrough + wishlist by room.

  2. Design – Simple cable map, AP locations, rack, and conduit plan.

  3. Install & Support – Clean pull, certification tests, labeled terminations, and a friendly handoff.
