Smart Home Wiring Guide

1. A Strong Wired Home Network

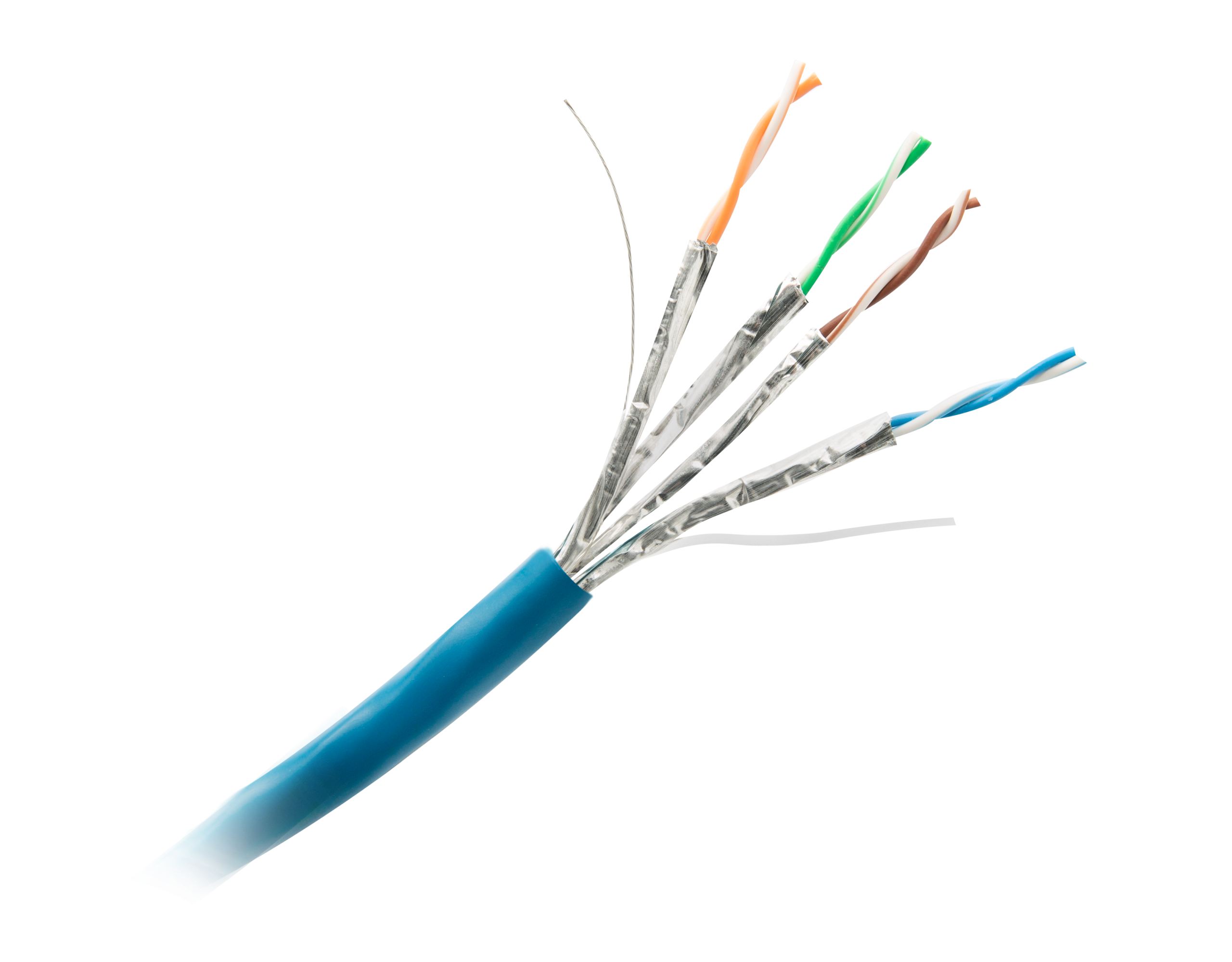

The home network is the base for most smart systems. It supports streaming, work calls, gaming, phones, tablets, smart TVs, cameras, smart controls, and many other devices. For that reason, network cable should run to more places than the home needs today. It should reach TV walls, office areas, media rooms, camera points, ceiling access point locations, and the main equipment area.

Wired network links are often more stable than a wireless link. They also reduce the load placed on WiFi. That matters in homes with many users and connected devices. Ceiling access points should be part of the plan as well. A single router placed in a cabinet may not cover the full home. Walls, floors, mirrors, tile, metal, and distance can weaken the signal.

A smart design places access points where they can give even coverage. It also gives each point a wired path back to the network equipment. Shultz Audio Video offers wired and wireless home network design. Its network installation service also notes that wired connections can provide more stable service for high bandwidth uses such as gaming and 4K streaming.

2. TV and Video

Each planned TV location needs more than power. It may also need network cable, coaxial cable, control wire, and a path for video cables. The right setup depends on where the source devices will live. Some homes keep a streaming box or cable box near each TV. Other homes place the equipment in a central rack.

A central system can reduce clutter near the screen. It can also make service easier. However, it requires careful planning before the walls close. The team should confirm the size and height of each TV. They should also confirm the mount type. A fixed mount, tilt mount, and moving mount may each need a different cable path.

A conduit may be useful at key screen locations. It creates an open path that can hold a new cable later. This can be helpful when video standards change. Planning these details early also helps keep power, data, and video connections hidden behind the screen.

3. Wire Whole Home Audio

Whole home audio lets music play in one room, several rooms, or the full home. Each area can have its own volume and source. Speaker wire should run from the main audio equipment to each speaker location. The plan should cover kitchens, living rooms, bedrooms, patios, pools, and other spaces where music may be enjoyed.

Speaker placement matters. A poor layout can leave loud and quiet spots in the same room. It may also place a speaker too close to a wall, light, fan, or air vent. The installer should review the room shape, ceiling height, furniture plan, and main use of the space. That helps create clear and even sound.

Outdoor speaker wiring needs extra care. The route and cable type should suit the setting. The plan should also protect the system from water and direct sun where possible. A whole home audio system can link several sound zones through one control system. Shultz Audio Video designs these systems for indoor and outdoor areas.

3. Wiring for a Home Theater

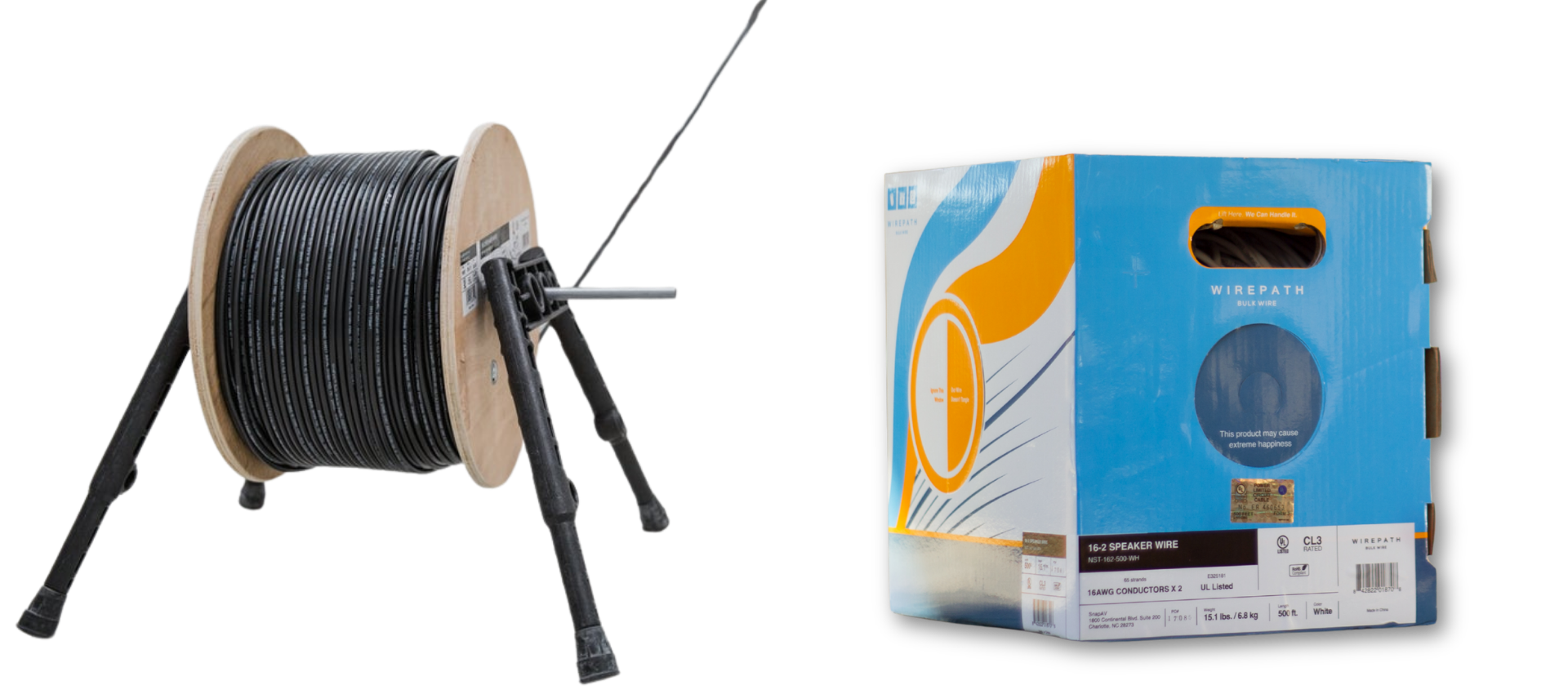

A home theater needs a complete plan before the room is closed. The plan should include the screen, projector or TV, speakers, subwoofers, controls, network links, and equipment rack. Speaker wire should match the final sound layout. That may include front speakers, a center speaker, side speakers, rear speakers, and ceiling speakers.

Projector rooms may also need a video path from the equipment area to the projector. A conduit can help protect this path and allow for future cable changes. The subwoofer plan should not be left until the end. One or more cable points may be placed around the room. This gives the installer more options when the system is tuned.

Control wire and network cable should also reach the main devices. Smart control can then bring the theater to life with one simple command. Home theater wiring should be designed as part of the full room plan. The screen, sound system, network, controls, and equipment location all affect one another.

4. Smart Home Control

A smart home control system can link sound, video, lights, shades, climate, cameras, locks, and other tools. Some devices use the network. Others may need a direct control line. Therefore, the wiring plan should be based on the system design, not on a list of random products.

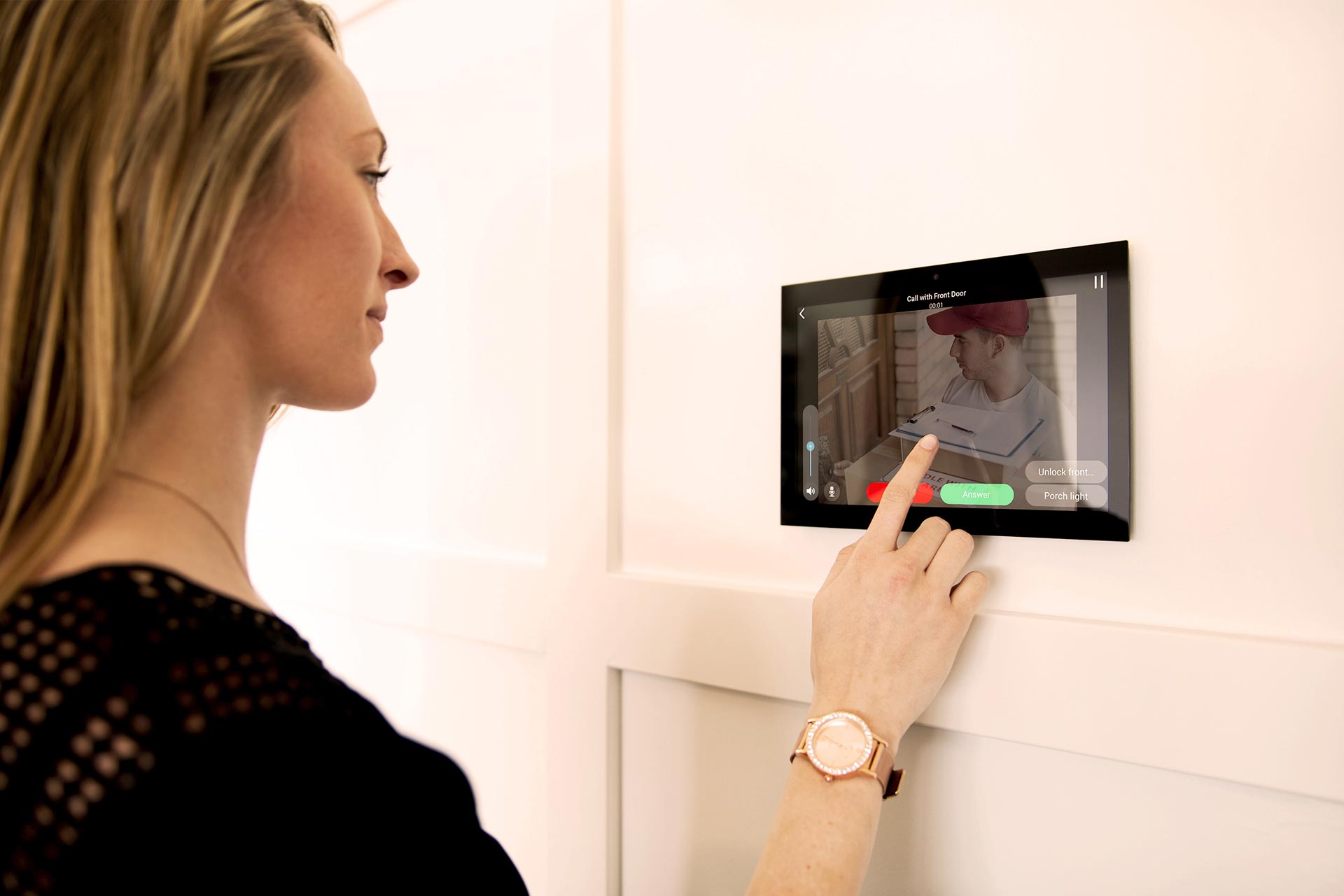

Keypads and touch screens should be placed where they feel natural to use. Common spots include main doors, hallways, kitchens, bedrooms, and media spaces. The plan should also cover hidden equipment. Control processors, network switches, audio gear, and other parts need a safe and easy to reach home.

Good control should make the home feel simple. The wiring behind it may be complex, but the daily use should not be. Shultz Audio Video installs home automation systems that can combine entertainment, lighting, climate, networking, security, and other home controls. (Shultz Audio Video)

6. Security Cameras and Video Doorbells

Cameras often work best when they have a wired network link and a steady power source. A wired plan can also reduce the need to charge batteries. Camera points should cover the areas that matter most. Common locations include driveways, front doors, side gates, yards, garages, and outdoor living areas.

Placement should be planned with care. A camera that is too high may miss faces. A camera that is too low may be easy to reach. Sun glare and night lighting can also affect the view. Doorbell wiring should support the chosen device and its power needs. The team should also plan how the doorbell will connect with the network and smart home system.

Running cable to likely camera locations during construction keeps more options open. Even when cameras are not installed at once, the hidden cable can reduce added work later.

7. Motorized Shades

Motorized shades can control glare, heat, privacy, and light. Yet power is often forgotten until the window work is almost done. A hardwired shade system can reduce the need for battery changes. It can also support clean control through a keypad, app, or smart home scene.

Shade wiring should be planned with the window team. The cable must reach the correct side of the shade pocket or frame. Small placement errors can create visible wire or extra labor. The plan should cover every window that may receive a shade, even if some shades will be added later.

It is easier to leave an unused wire hidden near a window than it is to open a finished wall after the shades arrive.

8. Smart Lighting Control

Smart lighting control can create scenes for daily life. One button can prepare the home for dinner, a movie, bedtime, or a trip away. The wiring needs depend on the lighting system. Some systems use smart switches or dimmers in each room. Others use panels in a central location.

The smart home installer and electrician should agree on the design before rough work begins. This avoids missing neutral wires, poor box sizes, or a layout that blocks future control. The goal is not to add a smart switch to every wall. The goal is to create lighting that feels easy and natural.

Lighting control should also work with the rest of the home. For example, one scene could lower the shades, dim the lights, and start the home theater.

9. Outdoor Entertainment

Outdoor areas need network cable, speaker wire, TV connections, camera cable, and control lines. These routes should be planned before hardscape, stone, stucco, or finished ceilings are in place. Once those surfaces are done, new wire can be hard to hide.

The plan should include the patio, pool, grill area, yard, and any detached space. It should also allow for  WiFi outside the main walls of the home. Outdoor systems need products and cable routes that fit the setting. Moisture, heat, salt air, and sun can all affect long term performance.

It is also important to think beyond one outdoor TV. Music, network coverage, lighting control, and cameras may all share the same outdoor plan.

10. A Central Equipment Location

Most smart homes need one main place for network and audio video equipment. This may be a rack in a closet, utility room, or other planned area. The space should be large enough for the current system and future growth. It should also have power, airflow, light, and clear service access.

A cramped cabinet can make upgrades hard. It can also trap heat around active equipment. All cables should be labeled at both ends. The rack or panel should also be neat and easy to follow. A clean system is easier to test, service, and expand.

Leviton describes structured media centers as central points for data, voice, and video cable. It also offers vented options because active equipment needs room and airflow. (Leviton)

Yes. Many low voltage systems can be added to an existing home. The work may use attics, crawl spaces, closets, baseboards, exterior paths, or small wall openings. However, a retrofit has more limits than a new build. Some areas may be hard to reach. The project may also need repair and paint work.

A professional can inspect the home and explain what is possible. In some cases, a mix of wired and wireless tools gives the best result. Even so, new construction and major remodels offer the best chance to build a clean base from the start.

Shultz Audio Video provides structured wiring for both new homes and existing properties. The company also notes that many low voltage systems can be added through a retrofit.
